7318 Model S20 Guide and Reference

Cable Planning Chart: Example

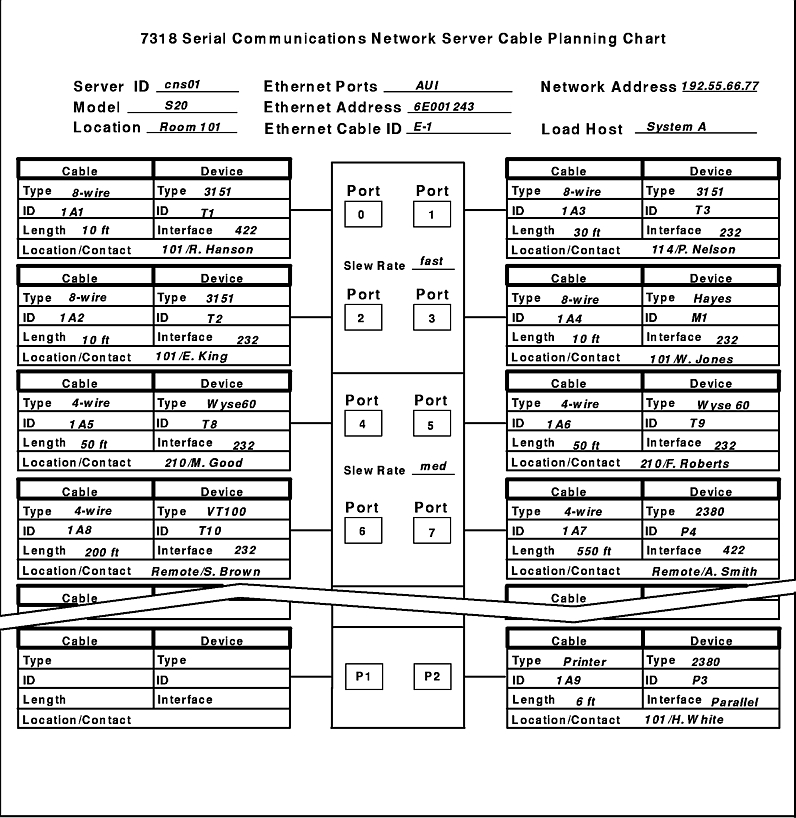

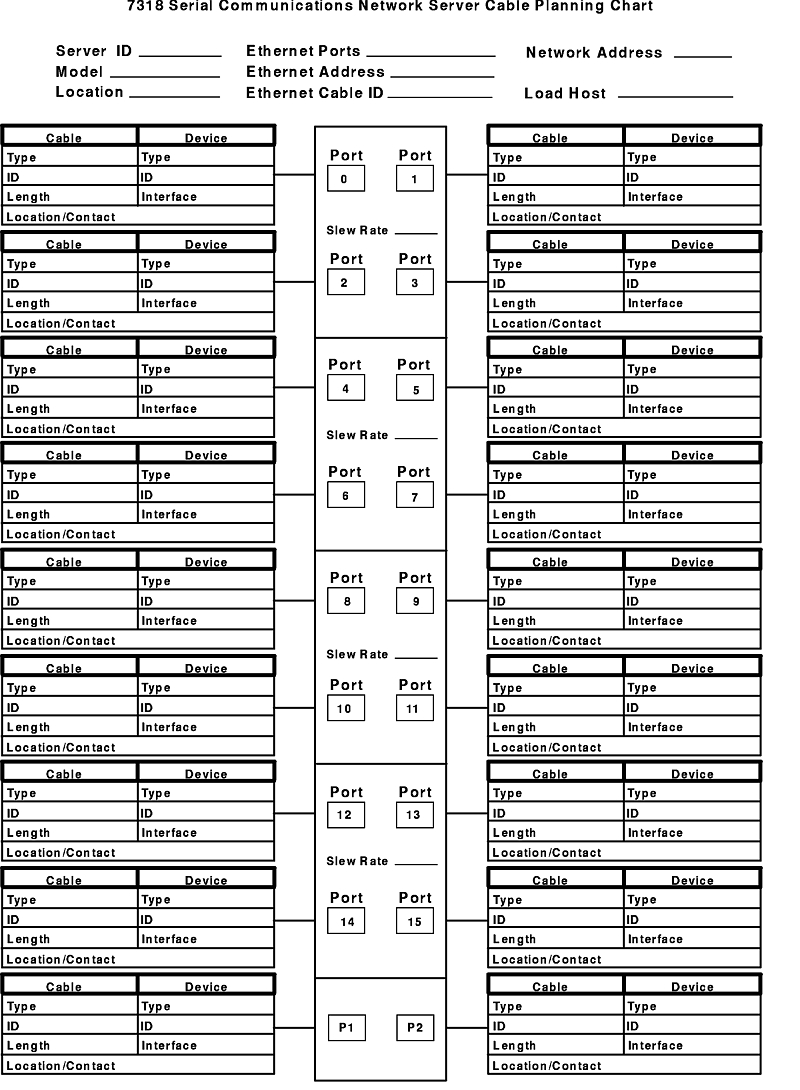

The example of the 7318 Terminal Server Cable Planning Chart shows connections for six terminals, one modem, one serial printer, and one parallel printer. The IDs assigned in the example are assigned by the configuration planner. A blank chart is available on the following page.
