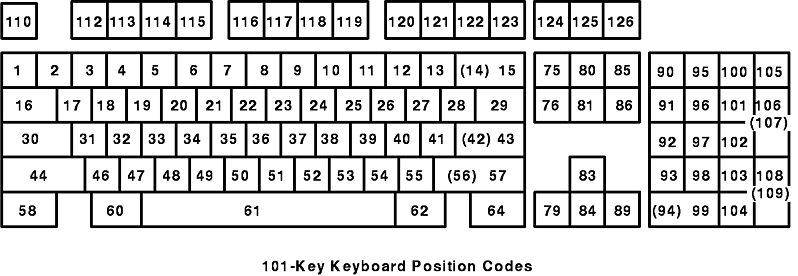

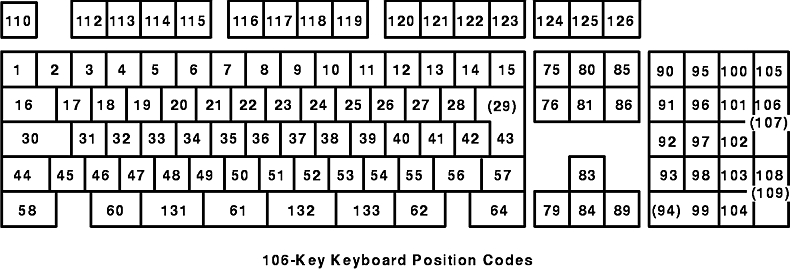

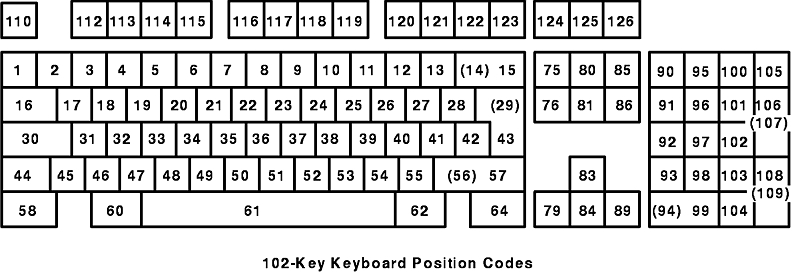

The diagrams depict the key position codes for the 101-key keyboard, the 102-key keyboard, and the 106-key keyboard, respectively.
The following table contains the keyboard scan codes for all keyboards. Each key on the keyboard is assigned a unique 8-bit scan code that is sent when the key is pressed.
Key Positions and Their Scan Codes | |||||||||||
1 | 0x0e | 23 | 0x3c | 45 | 0x13 | 67 | N/A | 89 | 0x6a | 111 | N/A |
2 | 0x16 | 24 | 0x43 | 46 | 0x1a | 68 | N/A | 90 | 0x76 | 112 | 0x07 |
3 | 0x1e | 25 | 0x44 | 47 | 0x22 | 69 | N/A | 91 | 0x6c | 113 | 0x0f |
4 | 0x26 | 26 | 0x4d | 48 | 0x21 | 70 | N/A | 92 | 0x6b | 114 | 0x17 |
5 | 0x25 | 27 | 0x54 | 49 | 0x2a | 71 | N/A | 93 | 0x69 | 115 | 0x1f |
6 | 0x2e | 28 | 0x5b | 50 | 0x32 | 72 | N/A | 94 | 0x68 | 116 | 0x27 |
7 | 0x36 | 29 | 0x5c | 51 | 0x31 | 73 | N/A | 95 | 0x77 | 117 | 0x2f |
8 | 0x3d | 30 | 0x14 | 52 | 0x3a | 74 | N/A | 96 | 0x75 | 118 | 0x37 |
9 | 0x3e | 31 | 0x1c | 53 | 0x41 | 75 | 0x67 | 97 | 0x73 | 119 | 0x3f |
10 | 0x46 | 32 | 0x1b | 54 | 0x49 | 76 | 0x64 | 98 | 0x72 | 120 | 0x47 |
11 | 0x45 | 33 | 0x23 | 55 | 0x4a | 77 | N/A | 99 | 0x70 | 121 | 0x4f |
12 | 0x4e | 34 | 0x2b | 56 | 0x51 | 78 | N/A | 100 | 0x7e | 122 | 0x56 |
13 | 0x55 | 35 | 0x34 | 57 | 0x59 | 79 | 0x61 | 101 | 0x7d | 123 | 0x5e |
14 | 0x5d | 36 | 0x33 | 58 | 0x11 | 80 | 0x6e | 102 | 0x74 | 124 | 0x57 |
15 | 0x66 | 37 | 0x3b | 59 | N/A | 81 | 0x65 | 103 | 0x7a | 125 | 0x5f |
16 | 0x0d | 38 | 0x42 | 60 | 0x19 | 82 | N/A | 104 | 0x71 | 126 | 0x62 |
17 | 0x15 | 39 | 0x4b | 61 | 0x29 | 83 | 0x63 | 105 | 0x84 | 127 | N/A |
18 | 0x1d | 40 | 0x4c | 62 | 0x39 | 84 | 0x60 | 106 | 0x7c | 128 | N/A |
19 | 0x24 | 41 | 0x52 | 63 | N/A | 85 | 0x6f | 107 | 0x7b | 129 | N/A |
20 | 0x2d | 42 | 0x53 | 64 | 0x58 | 86 | 0x6d | 108 | 0x79 | 130 | N/A |
21 | 0x20 | 43 | 0x5a | 65 | N/A | 87 | N/A | 109 | 0x78 | 131 | 0x20 |
22 | 0x35 | 44 | 0x12 | 66 | N/A | 88 | N/A | 110 | 0x08 | 132 | 0x28 |
133 | 0x30 |
