chvmode Command

Commands Reference, Volume 1

chvmode Command

Purpose

Changes the current output device and viewport size of the X server.

Note: This command is usable only while the X server is running.

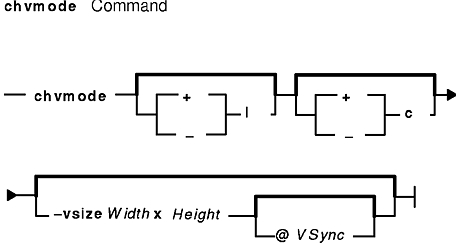

Syntax

chvmode [ { + | - } l ] [ { + | - } c ] [ -vsize WidthxHeight [ @ VSync ]

Description

The chvmode command changes the current output device and viewport size used by the X server.

Viewport size specification is usable only for a CRT display and its resolution has panning option. You can use a Web-based System Manager Devices application (wsm devices fast path) to run this command. You could also use the System Management Interface Tool (SMIT) to run this command.

Flags

+/-c	Enables or disables CRT output.
+/-l	Enables or disables LCD output.
-vsize WidthxHeight[ @VSync ]	Specifies viewport size of CRT display and the vertical synchronization (refresh rate in Hz). If @VSync is not specified, the current vertical synchronization frequency is used.

Security

Access Control: Any User

Auditing Events: None

Exit Status

The following exit values are returned:

0	Successful completion.
>0	An error occurred.

Examples

To disable the LCD panel and enable the CRT display, enter:
```
chvmode -l +c
```
To change the current CRT viewport to be 1024x768, enter:
```
chvmode -vsize 1024x768
```
To specify VGA mode with high refresh rate of 75Hz, enter:
```
chvmode -vsize 640x480@75
```

Files

/usr/bin/X11/chvmode

Contains the chvmode command.

Related Information

The lsvmode command.

Setting up and running Web-based System Manager in AIX Version 4.3 System Management Guide: Operating System and Devices.
