Assembler Language Reference

fdiv or fd (Floating Divide) Instruction

Purpose

Divides one floating-point operand by another.

Syntax

PowerPC

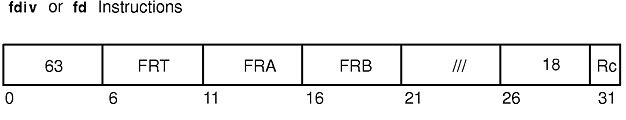

fdiv FRT,FRA,FRB
fdiv. FRT,FRA,FRB
POWER
fd FRT,FRA,FRB
fd. FRT,FRA,FRB

PowerPC

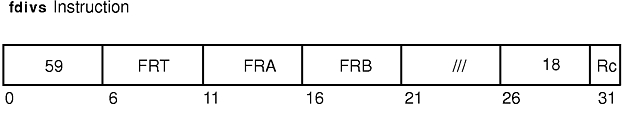

fdivs FRT,FRA,FRB
fdivs. FRT,FRA,FRB

Description

The fdiv and fd instructions divide the 64-bit, double-precision floating-point operand in floating-point register (FPR) FRA by the 64-bit, double-precision floating-point operand in FPR FRB. No remainder is preserved.

The fdivs instruction divides the 32-bit single-precision floating-point operand in FPR FRA by the 32-bit single-precision floating-point operand in FPR FRB. No remainder is preserved.

The result is rounded under control of the Floating-Point Rounding Control Field RN of the Floating-Point Status and Control Register (FPSCR), and is placed in the target FPR FRT.

The floating-point division operation is based on exponent subtraction and division of the two significands.

Note: If an operand is a denormalized number, then it is prenormalized before the operation is begun.

The Floating-Point Result Flags Field of the Floating-Point Status and Control Register is set to the class and sign of the result, except for Invalid Operation Exceptions, when the Floating-Point Invalid Operation Exception Enable bit is 1.

The fdiv, fdivs, and fd instructions each have two syntax forms. Each syntax form has a different effect on Condition Register Field 1.

Syntax Form Floating-Point Status and Control Register Record Bit (Rc) Condition Register Field 1
fdiv C,FL,FG,FE,FU,FR,FI,OX,UX, ZX,XX,VXSNAN,VXIDI,VXZDZ 0 None
fdiv. C,FL,FG,FE,FU,FR,FI,OX,UX, ZX,XX,VXSNAN,VXIDI,VXZDZ 1 FX,FEX,VX,OX
fdivs C,FL,FG,FE,FU,FR,FI,OX,UX, ZX,XX,VXSNAN,VXIDI,VXZDZ 0 None
fdivs. C,FL,FG,FE,FU,FR,FI,OX,UX, ZX,XX,VXSNAN,VXIDI,VXZDZ 1 FX,FEX,VX,OX
fd C,FL,FG,FE,FU,FR,FI,OX,UX, ZX,XX,VXSNAN,VXIDI,VXZDZ 0 None
fd. C,FL,FG,FE,FU,FR,FI,OX,UX, ZX,XX,VXSNAN,VXIDI,VXZDZ 1 FX,FEX,VX,OX

All syntax forms of the fdiv, fdivs, and fd instructions always affect the Floating-Point Status and Control Register. If the syntax form sets the Record (Rc) bit to 1, the instruction affects the Floating-Point Exception (FX), Floating-Point Enabled Exception (FEX), Floating-Point Invalid Operation Exception (VX), and Floating-Point Overflow Exception (OX) bits in Condition Register Field 1.

Parameters

FRT Specifies target floating-point register for operation.
FRA Specifies source floating-point register containing the dividend.
FRB Specifies source floating-point register containing the divisor.

Examples

  1. The following code divides the contents of FPR 4 by the contents of FPR 5, places the result in FPR 6, and sets the Floating-Point Status and Control Register to reflect the result of the operation:
    # Assume FPR 4 contains 0xC053 4000 0000 0000.
    # Assume FPR 5 contains 0x400C 0000 0000 0000.
    # Assume FPSCR = 0.
    fdiv 6,4,5
    # FPR 6 now contains 0xC036 0000 0000 0000.
    # FPSCR now contains 0x0000 8000.
  2. The following code divides the contents of FPR 4 by the contents of FPR 5, places the result in FPR 6, and sets Condition Register Field 1 and the Floating-Point Status and Control Register to reflect the result of the operation:
    # Assume FPR 4 contains 0xC053 4000 0000 0000.
    # Assume FPR 5 contains 0x400C 0000 0000 0000.
    # Assume FPSCR = 0.
    fdiv. 6,4,5
    # FPR 6 now contains 0xC036 0000 0000 0000.
    # FPSCR now contains 0x0000 8000.
    # CR contains 0x0000 0000.

Related Information

Floating-Point Processor .

Floating-Point Arithmetic Instructions .

Interpreting the Contents of a Floating-Point Register .
