Loads a halfword of data from a specified location in memory into a general-purpose register and sets the remaining 16 bits to 0.
| lhz | RT,D(RA) |

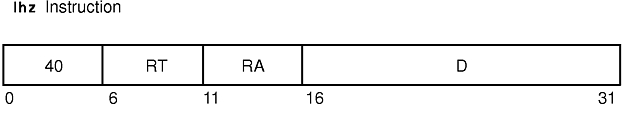

The lhz instruction loads a halfword of data from a specified location in memory, addressed by the effective address (EA), into bits 16-31 of the target general-purpose register (GPR) RT and sets bits 0-15 of GPR RT to 0.
If GPR RA is not 0, the EA is the sum of the contents of GPR RA and D, a 16-bit, signed two's complement integer sign-extended to 32 bits. If GPR RA is 0, then the EA is D.
The lhz instruction has one syntax form and does not affect the Fixed-Point Exception Register or Condition Register Field 0.
The following code loads a halfword of data into bits 16-31 of GPR 6 and sets bits 0-15 of GPR 6 to 0:
.csect data[rw] storage: .short 0xffff # Assume GPR 4 holds the address of csect data[rw]. .csect text[pr] lhz 6,storage(4) # GPR 6 now holds 0x0000 ffff.
Fixed-Point Load and Store Instructions .
