Network Information Services (NIS and NIS+) Guide

NIS+ Setup Scripts

This section describes the NIS+ scripts, specifically:

Note: Before running the NIS+ setup scripts, make sure you have performed the steps described in Prerequisites for Installing and Configuring NIS+.

The three NIS+ scripts--nisserver, nispopulate, and nisclient--enable you to set up an NIS+ namespace easily. The NIS+ scripts are shell scripts that execute groups of NIS+ commands so you do not have to type the NIS+ commands individually. The following table describes what each script does.

NIS+ Scripts
NIS+ Script What It Does
nisserver Sets up the root master, nonroot master and replica servers with level 2 security (DES) by default. Additionally, can be used to remove a server.
nispopulate Populates NIS+ tables in a specified domain from their corresponding system files or NIS maps.
nisclient Creates NIS+ credentials for hosts and users; initializes NIS+ clients and users. Can be used to restore the previous environment or to remove a client.

What the NIS+ Scripts Will Do

In combination with a few NIS+ commands, you can use the NIS+ scripts to perform all the tasks necessary for setting up an NIS+ namespace. See the nisserver, nispopulate, and nisclient command descriptions for a complete discussion of these commands and their options. Setting Up NIS+ With Scripts, shows you how to use the NIS+ scripts to set up an NIS+ namespace.

You can run each of the scripts without having the commands execute by using the -x option. This option lets you see what commands the scripts call and their approximate output without the scripts actually changing anything on your systems. First running the scripts with -x may minimize unexpected surprises.

What the NIS+ Scripts Will Not Do

While the NIS+ scripts reduce the effort required to create an NIS+ namespace, the scripts do not completely replace the individual NIS+ commands. The scripts only implement a subset of NIS+ features.

If you are unfamiliar with NIS+, you may wish to refer back to this section after you have created the sample NIS+ namespace.

The nisserver script will only set up an NIS+ server with the standard default tables and permissions (authorizations). This script does not:

See Setting Up NIS+ With Scripts, for how to use the nisgrpadm command instead of one of the NIS+ scripts to add extra NIS+ principals to the NIS+ admin group.

See Setting Up NIS+ With Scripts, for how to use the rpc.nisd command instead of one of the NIS+ scripts to change NIS+ client machines into nonroot servers.

The nisclient script does not set up an NIS+ client to resolve host names using DNS. You need to explicitly set DNS for clients that require this option.

Setting Up NIS+ With Scripts

This section shows you how to set up a basic NIS+ namespace using the nisserver, nispopulate, and nisclient scripts in combination with a few NIS+ commands.

Note: Using these scripts is the recommended method of setting up and configuring an NIS+ namespace. It is much simpler to use these scripts than to try setting up an NIS+ namespace with the NIS+ command set.

See the nisserver, nispopulate, and nisclient command descriptions for more information about the scripts.

You should not use the small sample NIS+ namespace described in this tutorial as a basis for your actual NIS+ namespace. You should destroy the sample namespace once you are done exploring it, instead of "adding on" to it. It is better to begin again and carefully plan your NIS+ hierarchy before you create your actual namespace.

The following table summarizes the recommended generic setup procedure. The left column lists the major setup activities, such as setting up the root domain or creating a client. The text in the middle describes the activities. The third column lists which script or NIS+ commands accomplish each step.

Recommended NIS+ Setup Procedure Overview
Activity Description Script/NIS+ Commands
Plan your new NIS+ namespace Plan your new NIS+ namespace. See Prerequisites for Installing and Configuring NIS+ for a full discussion of planning requirements and steps. (If you are just following the NIS+ tutorial in a test-bed network, this step has been done for you.)
Prepare your existing namespace In order for the scripts to work best, your current namespace (if any) must be properly prepared. See Preparing the Existing Namespace for a description of necessary preparations. (If you are just following the NIS+ tutorial in a test-bed network, this step has been done for you.)
Set up root Domain Create the root domain. Set up and initialize the root master server. Create the root domain admin group. nisserver
Populate tables Populate the NIS+ tables of the root domain from text files or NIS maps. Create credentials for root domain clients. Create administrator credentials. nispopulate, nisgrpadm, nisping
Set up root domain clients Set up the client machines. (Some of them will subsequently be converted into servers.) Initialize users as NIS+ clients. nisclient
Enable servers Enable some clients of the root domain to become servers. Some servers will later become root replicas; others will support lower-level domains. nisserver
Set up root replicas Designate one or more of the servers you just set up as replicas of the root domain. nisserver -R
Set up nonroot domains Create a new domain. Designate previously enabled server as its master. Create its admin group and admin credentials. rpc.nisd
Populate tables Create credentials for clients of the new domain. Populate the NIS+ tables of the new domain from text files or NIS maps. nispopulate
Set up nonroot domain clients Set up the clients of the new domain. (Some may subsequently be converted into servers for lower-level domains.) Initialize users as NIS+ clients. nisclient

The NIS+ scripts enable to you to skip most of the individual procedures included in the above activities.

Creating a Sample NIS+ Namespace

The procedures in this section show you how to create a sample NIS+ namespace. The sample NIS+ namespace will be created from /etc files and NIS maps. This sample shows you how to use the scripts both when your site is not running NIS and when NIS is running at your site. You can set your servers to NIS-compatibility mode if they will be serving NIS clients. See Using NIS-Compatibility Mode for more information on NIS-compatibility mode.

Note: Your site's actual NIS+ namespace and its domain hierarchy will probably differ from the sample namespace's, and yours will probably contain a different number of servers, clients, and domains. Do not expect any resemblance between your final domain configuration or hierarchy and the sample one. The sample namespace is merely an illustration of how to use the NIS+ scripts. Once you have created this sample namespace, you should have a clear idea about how to create domains, servers, and clients at your site.

The sample namespace will contain the following components:

This scenario shows the scripts being used to set up NIS+ at a site that uses both system information files, such as /etc/hosts, and NIS maps to store network service information. The sample NIS+ namespace uses such a mixed site purely for example purposes.

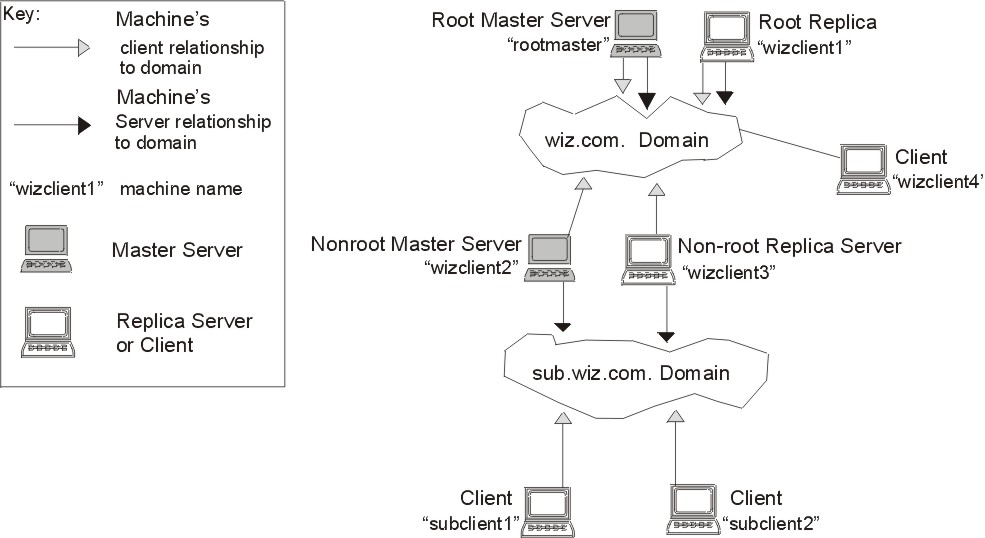

The figure shows the layout of the sample namespace. When you finish creating the sample domain, it should resemble the NIS+ domain in this figure. Notice that some machines are simultaneously servers and clients.

The following table contains the generic sequence of NIS+ scripts and commands you will use to create the NIS+ domains shown in the previous figure. Subsequent sections describe these command lines in detail. After you are familiar with the tasks required to create NIS+ domains, servers, and clients, use this table as a quick-reference guide to the appropriate command lines.The table summarizes the actual commands with the appropriate variables that you will type to create the sample NIS+ namespace.

NIS+ Domains Setup Command Lines Summary
Action Machine Command
Include /usr/lib/nis in root's path. Root master server and client machines as superuser
PATH=$PATH:/usr/lib/nis; export PATH
Create a root master server without or with NIS (YP) compatibility. Root master server as superuser
nisserver -r -d newdomain.

or

nisserver -Y -r -d newdomain.
Populate the root master server tables from files or from NIS maps. Root master server as superuser
nispopulate -F -p /files -d newdomain.

or

nispopulate -Y -d newdomain. -h NIS_servername \
   -a NIS_server_ipaddress -y NIS_domain
Add additional users to the NIS+ admin group. Root master server as superuser
nisgrpadm -a admin.domain. name.domain.
Make a checkpoint of the NIS+ database Root master server as superuser
nisping -C domain.
Initialize a new client to the server. Server machine as superuser
nisclient -c clientname
Note: If you get an error that this client does not exist, add the following entry to the hosts table:
nistbladm -a name=clientname cname=clientname \
  addr=ipaddress hosts.org_dir

If clientname exists in /etc/hosts, you do not need to run this command.

Initialize a new client machine. Client machine as superuser
nisclient -i -d domain. -h rootmaster
Initialize user as an NIS+ client. Client machine as user
nisclient -u
Start the rpc.nisd daemon--required to convert a client to a server without or with NIS (and DNS) compatibility. Client machine as superuser
startsrc -s rpc.nisd

or

startsrc -s rpc.nisd -a "-Y"

or

startsrc -s rpc.nisd -a "-Y -B"
Convert a server to a root replica. Root master server as superuser
nisserver -R -d domain. -h clientname
Convert a server to a nonroot master server. Root master server as superuser
nisserver -M -d newsubdomain.domain. -h clientmachine
Populate the new master server tables from files or from NIS maps. New subdomain master server as superuser
nispopulate -F -p /subdomaindirectory -d \
  newsubdomain.domain.

or

nispopulate -Y -d newsubdomain.domain. -h \
  NIS_servername -a NIS_server_ipaddress -y NIS_domain
Convert a client to a master server replica. Subdomain master server as superuser
nisserver -R -d subdomain.domain. -h clientname
Initialize a new client of the subdomain. Clients can be converted to subdomain replicas or to another server. New subdomain client machine as superuser
nisclient -i -d newsubdomain.domain. -h subdomainmaster
Initialize user as an NIS+ client. Client machine as user
nisclient -u
Note: To see what commands an NIS+ script will call without actually having the commands execute, use the -x option. The -x option will cause the command names and their approximate output to echo to the screen as if you were actually running the script. Running the scripts for the first time with -x may minimize unexpected results.

Setting Up NIS+ Root Servers

Setting up the root master server is the first activity towards establishing NIS+ domain. This section shows you how to set up a root master server using the nisserver script with default settings. The root master server will use the following defaults:

Prerequisites

Check to see that the /etc/passwd file on the machine you want to be root master server contains an entry for root.

You need the following:

In the following example, the machine that will be designated the root master server is called rootmaster, and wiz.com. will be the new root domain.

Attention: Domains and hosts should not have the same name. For example, if you have wiz.com as a root domain you should not have a machine named wiz in any of your domains. Similarly, if you have a machine named home, you do not want to create a domain named home. This caution applies to subdomains; for example, if you have a machine named west, you do not want to create a sales.west.myco.com subdomain. If names are not unique, NIS+ cannot parse addresses correctly. See the chypdom command description.

Procedure -- Creating a Root Master Server

  1. Set the superuser's PATH variable to include /usr/lib/nis. Add this path to root's .profile file or set the variable directly.
  2. Type the following command as superuser (root) to set up a root master server.

    The -r option indicates that a root master server should be set up. The -d option specifies the NIS+ domain name.

    rootmaster# nisserver -r -d wiz.com.

    This script sets up this machine "rootmaster" as an NIS+ root master server for domain wiz.com.

    Domain name                   : wiz.com.
    NIS+ group                    : admin.wiz.com.
    NIS (YP) compatibility        : OFF
    Security level                : 2=DES
    Is this information correct? (type 'y' to accept, 'n' to change)

    "NIS+ group" refers to the group of users who are authorized to modify the information in the wiz.com. domain. (Domain names always end with a period.) Modification includes deletion. admin.domainname is the default name of the group. See Changing Incorrect Information for instructions on how to change this name.

    NIS compatibility refers to whether an NIS+ server will accept information requests from NIS clients. When set to OFF, the default setting, the NIS+ server will not fulfill requests from NIS clients. When set to ON, an NIS+ server will fulfill such requests. You can change the NIS-compatibility setting with this script. See Changing Incorrect Information.

    Note: This script only sets machines up at security level 2, the highest level of NIS+ security. You cannot change the security level when using this script. After the script has completed, you can change the security level with the appropriate NIS+ command. See NIS+ Security Levels and the rpc.nisd documentation for more information on changing security levels.
  3. Type y (if the information shown on the screen is correct).

    Typing n causes the script to prompt you for the correct information. (See Changing Incorrect Information for what you need to do if you type n.)

    Is this information correct? (type 'y' to accept, 'n' to change) y

    This script will set up your machine as a root master server for domain wiz.com. without NIS compatibility at security level 2.

    Use "nisclient -r" to restore your current network service environment.

    Do you want to continue? (type 'y' to continue, 'n' to exit the script)
  4. Type y to continue the NIS+ setup.

    (Typing n safely stops the script.) If you interrupt the script after you have chosen y and while the script is running, the script stops running and leaves set up whatever it has created so far. The script does not do any automatic recovery or cleaning up. You can always rerun this script.

    Do you want to continue? (type 'y' to continue, 'n' to exit the script

    setting up domain information "wiz.com." ...

    The rpc.nisd Subsystem has been started.
    The nis_cachemgr Subsystem has been started.
    The rpc.nispasswdd Subsystem has been started.

    running nisinit ...
    This machine is in the wiz.com. NIS+ domain.
    Setting up root server ...
    All done.

    starting root server at security level 0 to create credentials...
    running nissetup ...
    (creating standard directories & tables)
    org_dir.wiz.com. created
    ...
    ...
    Enter login password:

    The nissetup command creates the directories for each NIS+ table.

  5. Type your machine's root password at the prompt and press Return.

    In this case, the user typed the rootmaster machine's root password.

    Wrote secret key into /etc/.rootkey

    setting NIS+ group to admin.wiz.com. ...

    restarting root server at security level 2 ...

    This system is now configured as a root server for domain wiz.com. You can now populate the standard NIS+ tables by using the nispopulate or /usr/lib/nis/nisaddent commands.

Your root master server is now set up and ready for you to populate the NIS+ standard tables. To continue with populating tables, skip to Populating NIS+ Tables.

Procedure -- Changing Incorrect Information

If you typed n because some or all of the information returned to you was wrong in Step 3 in the above procedure, you will see the following:

Is this information correct? (type 'y' to accept, 'n' to change) n
Domain name: [wiz.com.]
  1. Press Return if the domain name is correct; otherwise, type the correct domain name and press Return.

    In this example, Return was pressed, confirming that the desired domain name is wiz.com. The script then prompts for the NIS+ group name.

    Is this information correct? (type 'y' to accept, 'n' to change) n
    Domain name: [wiz.com.]
    NIS+ group: [admin.wiz.com.]
  2. Press Return if NIS+ group is correct; otherwise, type the correct NIS+ group name and press Return.

    In this example, the name was changed. The script then prompts for NIS compatibility.

    NIS+ group: [admin.wiz.com.] netadmin.wiz.com.
    NIS (YP) compatibility (0=off, 1=on): [0]
  3. Press Return if you do not want NIS compatibility; otherwise, type 1 and press Return.

    In this example, Return was pressed, confirming that NIS compatibility status is correct. Once again, the script asks you if the information is correct.

    Note: If you choose to make this server NIS compatible, you also need to edit a file and restart the rpc.nisd daemon before it will work. See Configuring an NIS+ Server for more information.
    NIS (YP) compatibility (0=off, 1=on): [0]

    Domain name             : wiz.com.
    NIS+ group              : netadmin.wiz.com.
    NIS (YP) compatibility  : OFF
    Security level          : 2=DES

    Is this information correct? (type 'y' to accept, 'n' to change)

    Once the information is correct, continue with Creating a Root Master Server. You can keep choosing n until the information is correct.

    Notes:
    • If you make a mistake and want to start over, use the nisserver -D command. However, understand that this command removes everything from the /var/nis directory, including the directory itself. If you are running in NIS-compatibility mode, it also removes /var/yp/ypdomain.
    • This script only sets machines up at security level 2. You cannot change the security level when using this script. After the script has completed, you can change the security level with the appropriate NIS+ command. See NIS+ Security Levels and the rpc.nisd documentation for more information on changing security levels.

Populating NIS+ Tables

Once the root master server has been set up, you should populate its standard NIS+ tables with name services information. This section shows you how to populate the root master server's tables with data from files or NIS maps using the nispopulate script with default settings. The script uses:

Prerequisites

Before you can run the nispopulate script:

If populating from files, you need:

If populating from NIS maps, you need:

Note: The NIS domain name is case-sensitive, while the NIS+ domain name is not.

Procedure

  1. Perform either of the following alternatives to populate the root master server tables and then continue with the next step.

    The first alternative below shows you how to populate tables from files. The second shows you how to populate tables from NIS maps. Type these commands in a scrolling window; otherwise, the script's output may scroll off the screen.

    Note: The nispopulate script may fail if there is insufficient /tmp space on the system.
  2. Type y (if the information returned on the screen is correct).

    Typing n causes the script to prompt you for the correct information. (See Changing Incorrect Information for what you need to do if the information is incorrect.)

  3. If you populated the tables from files, you will see the following:
    Is this information correct? (type 'y' to accept, 'n' to change) y

    This script will populate the following NIS+ tables for domain
    wiz.com from the files in /nis+files:
    auto_master auto_home ethers group hosts networks passwd protocols services rpc
    netmasks bootparams netgroup aliases shadow

    **WARNING: Interrupting this script after choosing to continue
    may leave the tables only partially populated. This script does
    not do any automatic recovery or cleanup.

    Do you want to continue? (type 'y' to continue, 'n' to exit this script)
  4. If you populated the tables from maps, you will see the following:
    Is this information correct? (type 'y' to accept, 'n' to change) y

    This script will populate the following NIS+ tables for domain wiz.com. from the NIS (YP) maps in domain corporate: auto_master auto_home ethers group hosts networks passwd protocols services rpc netmasks bootparams netgroup aliases

    **WARNING: Interrupting this script after choosing to continue
    may leave the tables only partially populated. This script does
    not do any automatic recovery or cleanup.

    Do you want to continue? (type 'y' to continue, 'n' to exit this script)
  5. Type y to continue populating the tables.

    (Typing n safely stops the script.) If you interrupt the script after you have chosen y--while the script's running--the script stops running and may leave the tables only partially populated. The script does not do any automatic recovery or cleaning up. You can safely rerun the script, however, the tables will be overwritten with the latest information.

  6. If you are populating tables from files, you will see messages like the following as the script uses hosts and passwd information to create the credentials for hosts and users:
    Do you want to continue? (type 'y' to continue, 'n' to exit this script) y


    populating auto_master table from file /nis+files/auto_master...
    auto_master table done.

    populating auto_home table from file /nis+files/auto_home...
    auto_home table done.

    ....
    ....

    Credentials have been added for the entries in the hosts and
    passwd table(s). Each entry was given a default network password
    (also known as a Secure-RPC password). This password is:
                       nisplus
    Use this password when the nisclient script requests the network
    password.
    Done!
    Note: Note and remember this Secure RPC password. Use the password when prompted for your network or Secure RPC password.

    The script continues until it has searched for all the files it expects and loads all the tables it can from the available files.

  7. If you are populating tables from NIS maps, you will see messages like the following as the script uses hosts and passwd information to create the credentials for hosts and users:
    Do you want to continue? (type 'y' to continue, 'n' to exit this script) y

    populating auto_master table from corporate.wiz.com NIS(YP) domain...
    auto_master table done.

    populating auto_home table from file corporate.wiz.com NIS(YP) domain...
    auto_home table done.

    ....

    Credentials have been added for the entries in the hosts and
    passwd table(s). Each entry was given a default network password
    (also known as a Secure-RPC password). This password is:
                        nisplus
    Use this password when the nisclient script requests the network
    password.
    Done!
    Note: Note and remember this Secure RPC password. Use the password when prompted for your network or Secure RPC password.

    All the tables are now populated. You can ignore the parse error warnings shown above. The errors indicate that NIS+ found empty or unexpected values in a field of a particular NIS map. You may want to verify the data later after the script completes.

    Note: The nispopulate command looks for certain tables or files and may not find all expected tables or files in your environment. It ends successfully if it populates at least one table or file.
  8. (Optional) Add yourself and others to the root domain's admin group.

    For example, if your login ID is topadm and your co-worker's ID is secondadmin, you would enter:

    rootmaster# nisgrpadm -a admin.wiz.com. topadm.wiz.com. secondadm.wiz.com.
    Added "topadm.wiz.com." to group "admin.wiz.com.".
    Added "secondadm.wiz.com." to group "admin.wiz.com.".

    The admin.wiz.com. argument in the nisgrpadm -a command above is the group name which must come first. The remaining two arguments are the names of the administrators.

    Note: This step is necessary only if you want to add additional users to the admin group now, which is a good time to add administrators to the root server. You can also add users to the admin group after you have set up NIS+.

    You do not have to wait for the other administrators to change their default passwords to perform this step; however, they must already be listed in the passwd table before you can add them to the admin group. Members of the admin group will be unable to act as NIS+ principals until they add themselves to the domain. See Initializing an NIS+ User for more information on initializing users. The group cache also has to expire before the new members will become active.

  9. Type the following command to checkpoint the domain.
    rootmaster# nisping -C wiz.com.
    Checkpointing replicas serving directory wiz.com.
    Master server is rootmaster.wiz.com.
            Last update occurred at date

    Master server is rootmaster.wiz.com.
    checkpoint scheduled on rootmaster.wiz.com.

    This step ensures that all the servers supporting the domain transfer the new information from their initialization(.log) files to the disk-based copies of the tables. Since you have just set up the root domain, this step affects only the root master server, as the root domain does not yet have replicas.

    Attention: If you do not have enough swap or disk space, the server will be unable to checkpoint properly, but it will not notify you. One way to make sure all goes well is to list the contents of a table with the niscat command. For example, to check the contents of the rpc table, type:
    rootmaster# niscat rpc.org_dir
    rpcbind rpcbind 100000
    rpcbind portmap 100000
    rpcbind sunrpc 100000

    If you do not have enough swap space, you'll see the following error message instead of the sort of output you see above.

    can't list table: Server busy, Try Again.

    Even though it may not seem to, this message indicates that you do not have enough swap space. Increase the swap space and checkpoint the domain again.

Setting Up Root Domain NIS+ Client Machines

Once the root master server's tables have been populated from files or NIS maps, you can initialize an NIS+ client machine. Since the root master server is an NIS+ client of its own domain, no further steps are required to initialize it. This section shows you how to initialize an NIS+ client by using the nisclient script with default settings. The NIS+ client machine is a different workstation than the NIS+ root server. The script will use:

Note: The -i option used in Initializing a New Client Machine does not set up an NIS+ client to resolve host names requiring DNS. You need to explicitly include DNS for clients in their name service switch files.

Prerequisites

Before you can use the nisclient script:

You need:

Procedure -- Initializing a New Client Machine

  1. Type the following command to initialize the new client on the new client machine.

    The -i option initializes a client. The -d option specifies the new NIS+ domain name. (If the domain name is not specified, the default would be the current domain name.) The -h option specifies the NIS+ server's host name.

    wizclient1#nisclient -i -d wiz.com. -h rootmaster

    Initializing client wizclient1 for domain "wiz.com.".
    Once initialization is done, you will need to reboot your
    machine.

    Do you want to continue? (type 'y' to continue, 'n' to exit this script)
  2. Type y.

    Typing n exits the script. The script only prompts you for the root server's IP address if there is no entry for it in the client's /etc/hosts file.

    Do you want to continue? (type 'y' to continue, 'n' to exit this script) y

    Type server rootmaster's IP address:
  3. Type the correct IP address, and press Return.

    This example uses the address 123.123.123.123.

    Type server rootmaster's IP address: 123.123.123.123

    setting up the domain information...

    setting up the name service switch information...

    Client initialization completed!!
    Please reboot your machine for changes to take effect.
  4. Reboot your new client machine.

    Your changes will not take effect until you reboot the machine.

    You can now have the users of this NIS+ client machine add themselves to the NIS+ domain.

Procedure -- Creating Additional Client Machines

Repeat the preceding client-initiation procedure on as many machines as you like. To initiate clients for another domain, repeat the procedure but change the domain and master server names to the appropriate ones.

The sample NIS+ domain described in this section assumes that you will initialize four clients in the domain wiz.com. You are then going to configure two of the clients as non-root NIS+ servers and a third client as a root replica of the root master server of the wiz.com domain.

Note: You always have to make a system into a client of the parent domain before you can make the same system a server of any type.

Initializing NIS+ Client Users

Once a machine has become an NIS+ client, the users of that machine must add themselves to the NIS+ domain. Adding a user to the domain means changing the Secure RPC password to that user's login password. What actually happens is that the user's password and the Secure RPC password are bound together. This procedure uses the nisclient script.

Prerequisites

Before you can use the nisclient script to initialize a user:

You need:

Procedure

  1. To become an NIS+ client, type the following command while logged in as the user.
    user1prompt% nisclient -u
  2. At the prompt below, type the network password (also known as the Secure-RPC password) that you obtained either from your administrator or from running the nispopulate script.
    Please enter the Secure-RPC password for user1:

    Enter the Secure RPC password nisplus, in this case. The password does not echo on the screen.

  3. Type the user's login password and press Return. The password does not echo on the screen.
    Please enter the login password for user1:

    Your network password has been changed to your login one.
    Your network and login passwords are now the same.

    This user is now an NIS+ client. All users must make themselves NIS+ clients.

Setting Up NIS+ Servers

Now that the client machines have been initialized, you can change any of them to NIS+ servers but not into root NIS+ servers. Root NIS+ servers are a special type of NIS+ server. See Setting Up NIS+ Root Servers for more information. You need NIS+ servers for three purposes:

You can configure servers any of three different ways:

Servers and their replicas should have the same NIS-compatibility settings. If they do not have the same settings, a client that needs NIS compatibility set to receive network information may not be able to receive it if either the server or replica it needs is unavailable.

Note: If the root master server is unavailable and the NIS+ domain is being served solely by a replica, you can obtain information from the NIS+ tables, but changes to the original tables can be made only when the master server is available.

This example shows the machine wizclient1 being changed to a server. This procedure uses the NIS+ mk_nisd command instead of an NIS+ script.

Prerequisites

Before you can run mk_nisd:

You need the superuser password of the client that you will convert into a server.

Procedure -- Configuring an NIS+ Server

Perform any of the following to alternative procedures to configure a client as a server. These procedures create a directory with the same name as the server and create the server's initialization files which are placed in /var/nis.

Note: All servers in the same domain must have the same NIS-compatibility setting. For example, if the master server is NIS compatible, then its replicas also should be NIS compatible.

To configure a server without NIS compatibility:

wizclient1# mk_nisd -B

To configure a server with NIS compatibility:

wizclient1# mk_nisd -B -y

To configure a server with DNS forwarding and NIS compatibility:

wizclient1# mk_nisd -B -y -b

You must have superuser authority to run mk_nisd. For more information, see the command description for mk_nisd.

Procedure -- Creating Additional Servers

Repeat the preceding client-to-server conversion procedure on as many client machines as you like.

The sample NIS+ domain described in this section assumes that you will convert three clients to servers. You will then configure one of the servers as a root replica, another as a master of a new subdomain, and the third as a replica of the master of the new subdomain.

Designating Root Replicas

To have regularly available NIS+ service, you should always create root replicas. Having replicas may also speed network-request resolution because multiple servers are available to handle requests. The root replica server contains exact copies of the NIS+ tables on the root server.

Note: If the root master server is unavailable and the NIS+ domain is being served solely by a replica, you can obtain information from the NIS+ tables, but changes to the original tables can be made only when the master server is available.

Replication of the master's database starts a few minutes after you perform this procedure and can take anywhere from a few minutes to a couple of hours to complete, depending on the size of your tables.

This example shows the machine wizclient1 being configured as a root replica. This procedure uses the NIS+ nisserver script.

Prerequisites

Before you can run nisserver to create a root replica:

You need:

Procedure -- Creating a Root Replica

  1. To create a root replica, type the following command as superuser (root) on the NIS+ domain's root master server.

    The -R option indicates that a replica should be set up. The -d option specifies the NIS+ domain name (wiz.com., in this example). The -h option specifies the client machine (wizclient1, in this example) that will become the root replica.

    rootmaster# nisserver -R -d wiz.com. -h wizclient1
    This script sets up an NIS+ replica server for domain wiz.com.
    Domain name: :wiz.com.
    NIS+ server: :wizclient1
    Is this information correct? (type 'y' to accept, 'n' to change)

  2. Type y to continue.

    Typing n causes the script to prompt you for the correct information. (See Changing Incorrect Information for what you need to do if you type n.)

    Is this information correct? (type 'y' to accept, 'n' to change) y
    This script will set up machine "wizclient1" as an NIS+
    replica server for domain wiz.com. without NIS compatibility.
    The NIS+ server daemon, rpc.nisd, must be running on wizclient1
    with the proper options to serve this domain. Do you want to continue?
     (type 'y' to continue, 'n' to exit this script)
  3. Type y to continue.

    Typing n safely stops the script. The script will exit on its own if rpc.nisd is not running on the client machine.

    Is this information correct? (type y' to continue, 'n' to exit this script) y

    The system wizclient1 is now configured as a replica server for domain wiz.com..

    The NIS+ server daemon, rpc.nisd, must be running on wizclient1 with the proper options to serve this domain. If you want to run this replica in NIS-compatibility mode, use the mk_nisd command to uncomment the appropriate lines in the /etc/rc.nfs file and set the -Y option. For example, before the command, the /etc/rc.nfs file contains:

    # if [-x/usr/sbin/rpc.nisd] then;
    # startsrc -s rpc.nisd
    #

    After running mk_nisd, the same lines appear as:

    if [-x/usr/sbin/rpc.nisd] then;
    startsrc -s rpc.nisd


    Then, restart rpc.nisd. These actions should be taken after this script completes.

Note: The mk_nisd, mk_cachemgr, mk_nispasswdd, rm_nisd, rm_cachemgr, and rm_nispasswdd commands alter the entries of daemon startup calls in /etc/rc.nfs, and they alter the default behavior of the daemon src entities. For example, if the rpc.nisd daemon is supposed to be started with the -Y option, it is not explicitly set in the /etc/rc.nfs entry for starting the rpc.nisd daemon. Instead, a chssys is executed to place the default options that are added (if any) to the daemons during startup. To verify that these options exist, use the lssrc -S -s subsystem command to show the default options.

The machine wizclient1 is now an NIS+ root replica. The new root replica can handle requests from the clients of the root domain. Since there are now two servers available to the domain, information requests may be fulfilled faster.

Procedure -- Creating Additional Replicas

Repeat the preceding server-to-replica conversion procedure for each additional server. For performance reasons, you should have no more than a few replicas per domain. Do create as many replicas, though, as is necessary to serve physically distant sites. For example, it may make sense from an organizational point of view to have two physically distant sites in the same NIS+ domain. If a root replica and the master of the domain are at the first site, there will be much network traffic between the first site and the second site of the domain. Creating an additional root replica at the second site should reduce network traffic.

The sample NIS+ domain described in this section includes only one root replica. One of the other clients of the wiz.com. domain will be converted to a replica of the subdomain created in the next section.

Creating a Subdomain

This section shows you how to create the master server of a new non-root domain. The new domain will be a subdomain of the wiz.com. domain. The hierarchical structure of NIS+ allows you to create a domain structure that parallels your organizational structure.

This example shows the machine wizclient2 being converted to the master server of a new domain called subwiz.wiz.com. This procedure uses the NIS+ script nisserver.

Prerequisites

Before you can run nisserver to create a master server for a new nonroot domain:

You need:

In the following example, the new nonroot domain is called subwiz.wiz.com.

Note: Any NIS+ client can be converted to an NIS+ master server as long as it is itself in a domain above the domain it will be serving. For example, an NIS+ client in domain subwiz.wiz.com can serve domains below it in the hierarchy, such as corp.subwiz.wiz.com or even east.corp.subwiz.wiz.com. This client cannot, however, serve the domain wiz.com, because wiz.com is above the domain subwiz.wiz.com in the hierarchy. Root replicas are the only exception to this rule. They are clients of the domain that they serve.

Procedure -- Creating a New NonRoot Domain

  1. Type the following command as superuser (root) on the NIS+ domain's root master server to create a new nonroot domain master server.

    The -M option indicates that a master server for a new nonroot domain should be created. The -d option specifies the new domain name, subwiz.wiz.com. in this instance. The -h option specifies the client machine, (wizclient2, in this example), that will become the master server of the new domain.

    rootmaster# nisserver -M -d subwiz.wiz.com. -h wizclient2

    This script sets up a non-root NIS+ master server for domain
    subwiz.wiz.com.
    Domain name             : subwiz.wiz.com.
    NIS+ server             : wizclient2
    NIS+ group              : admin.subwiz.wiz.com.
    NIS (YP) compatibility  : OFF
    Security level          : 2=DES
    Is this information correct? (type 'y' to accept, 'n' to change)

    Master servers of new nonroot domains are created with the same set of default values as root servers. See Creating a Root Master Server for more information on NIS+ group, NIS compatibility, and security level.

  2. Type y to continue.

    Typing n causes the script to prompt you for the correct information. (See Changing Incorrect Information for what you need to do if you type n.)

    Is this information correct? (type 'y' to accept, 'n' to change) y


    This script sets up machine "wizclient2" as an NIS+
    non-root master server for domain subwiz.wiz.com.

    Do you want to continue? (type 'y' to continue, 'n' to exit this script)
  3. Type y to continue.

    Typing n safely exits the script. The script will exit on its own if rpc.nisd is not running on the client machine.

    Do you want to continue? (type 'y' to continue, 'n' to exit this script) y
    running nissetup ...
    org_dir.subwiz.wiz.com. created
    groups_dir.subwiz.wiz.com. created
    ...
    ...
    setting NIS+ group admin.subwiz.wiz.com. ...

    The system wizclient2 is now configured as a non-root server for domain
    subwiz.wiz.com. You can now populate the standard NIS+ tables by using the
    nispopulate or /usr/lib/nis/nisaddent commands.

The machine wizclient2 is now the master server of the subwiz.wiz.com. domain. The subwiz.wiz.com. domain is a subdomain of the wiz.com. domain. The machine wizclient2 is simultaneously still a client of the root domain wiz.com., and the master server of the subwiz.wiz.com. domain.

You can now populate the standard NIS+ tables on the new master server of the subwiz.wiz.com. domain.

Procedure -- Creating Additional Domains

Repeat the preceding procedure for changing servers to master servers of new non-root domains on as many server machines as you like. Every new master server is a new domain. Plan your domain structure before you start creating an NIS+ namespace. See Configuration Worksheets for help with planning an NIS+ hierarchy.

Populating the New Domain's Tables

After you have created a new domain, you need to populate its master server's standard NIS+ tables. You use the same procedure to populate the new master server's tables as you used to populate the root master server's tables. The major difference is that the nispopulate script is run on the new master server instead of on the root master server. The domain names and file paths or NIS servers' names may change as well.

This example shows the tables of the new domain, subwiz.wiz.com., being populated.

Prerequisites

Before you can run the nispopulate script to populate the new master server's tables:

Note: The nispopulate script may fail if there is insufficient /tmp space on the system.

If populating from files, you need:

If populating from NIS maps, you need:

Note: The NIS domain name is case-sensitive, while the NIS+ domain name is not.

Procedure -- Populating the Master Server Tables

This example shows you what to type to populate the tables of the new domain, subwiz.wiz.com.

Note: This script should be run on the new domain's master server, not the root master server.

There are two alternate methods of populating the master server tables on the new master server:

Whichever method you choose should be executed in a scrolling window as the script's output may otherwise scroll off the screen.

Populating the Tables From Files

To populate master server tables from files, type the following commands.

wizclient2# nispopulate -F -p /nis+files -d subwiz.wiz.com.

NIS+ domain name        : subwiz.wiz.com.
Directory Path          : /nis+files

Is this information correct? (type 'y' to accept, 'n' to change)
Populating the Tables From NIS Maps

To populate master server tables from NIS maps, type the following commands.

wizclient2# nispopulate -Y -d subwiz.wiz.com. -h businessmachine \
  -a IP_addr_of_NIS_server -y business.wiz.com

NIS+ Domain name              : subwiz.wiz.com.
NIS (YP) domain               : business.wiz.com
NIS (YP) server hostname      : businessmachine

Is this information correct? (type 'y' to accept, 'n' to change)

Designating Replicas

Just as you did in the wiz.com. domain, to have regularly available NIS+ service, you should always create replicas. Having replicas may also speed network-request resolution since multiple servers are available to handle requests. The replica server contains exact copies of the NIS+ tables on the master server of your new domain. Replication of the master's database starts a few minutes after you perform this procedure and can take anywhere from a few minutes to a couple of hours to complete, depending on the size of your tables.

You use the same procedure to create a replica as you do to create a root replica. The major difference between creating the root replica and this replica is that the machine you are going to convert to a replica will remain a client of the domain above the one it will be serving as a replica. This example shows you only what you would type to create a replica for the new domain. For the rest of the script's output, see Creating a Root Replica.

Prerequisites

Before you can run nisserver to create a replica:

Procedure

Run the nisserver -R command as superuser (root) on the NIS+ domain's master server.

wizclient2# nisserver -R -d subwiz.wiz.com. -h wizclient3
This script sets up an NIS+ replica server for domain
subwiz.wiz.com.

Domain name:  subwiz.wiz.com.
NIS+ server:  wizclient3
Is this information correct? (type 'y' to accept, 'n' to change)

In this example, wizclient2 is the master server. The -R option indicates that a replica should be set up. The -d option specifies the NIS+ domain name (subwiz.wiz.com. in this example). The -h option specifies the client machine (wizclient3, in this example) that will become the replica. Notice that this machine is still a client of the wiz.com. domain and not a client of the subwiz.wiz.com. domain.

See Creating a Root Replica for the rest of this script's output.

Initializing Subdomain NIS+ Client Machines

Once the master server's tables have been populated from files or NIS maps, you can initialize an NIS+ client machine. This section shows you how to initialize an NIS+ client in the new domain using the nisclient script with default settings. The NIS+ client machine is a different workstation than the NIS+ master server.

You use the same procedure to initialize a client in the new domain as you do to initialize a client in the root domain. This example shows you only what you would type to initialize a client for the new domain. For the rest of the script's output, see Initializing a New Client Machine.

Prerequisites

Before you can use the nisclient script to initialize a user:

You need:

Procedure

Type the following command as superuser to initialize the new client on the new client machine.

subclient1# nisclient -i -d subwiz.wiz.com. -h wizclient2 -a wizclient2ipaddress

Initializing client subclient1 for domain "subwiz.wiz.com.".
Once initialization is done, you will need to reboot your
machine.

Do you want to continue? (type 'Y' to continue, 'N' to exit this script)

The -i option initializes a client. The -d option specifies the new NIS+ domain name. (If the domain name is not specified, the default would be the current domain name.) The -h option specifies the NIS+ server's host name. The -a option specifies the IP address of wizclient2.

See Initializing a New Client Machine for the rest of this script's output.

Initializing Subdomain NIS+ Client Users

You use the same procedure (nisclient) to initialize a user in the new domain as you do to initialize a user in the root domain. All users must make themselves NIS+ clients. This example shows you only what you would type to initialize a user for the new domain. For the rest of the script's output, see Initializing an NIS+ User.

Prerequisites

Before you can use the nisclient script to initialize a user:

You need:

Procedure

To become an NIS+ user, type the following command while logged in as the user.

user2prompt% nisclient -u

At the prompt below, type the network password (also known as the Secure-RPC password):

Please enter the Secure-RPC password for user2:

See Initializing an NIS+ User for the rest of this script's output.

Summary of Commands for the Sample NIS+ Namespace

The following table summarizes the actual commands that you typed to create the sample namespace. The prompt preceding each command indicates on which machine the command should be typed.

Creating the Sample Namespace: Command Summary
Tasks Commands
Set environment path to include /usr/lib/nis.
# PATH=$PATH:/usr/lib/nis; export PATH
Create root master server for wiz.com. domain.
rootmaster# nisserver -r -d wiz.com.
Populate the root master server's NIS+ tables--from files or from NIS maps.
rootmaster# nispopulate -F -p /nis+files -d wiz.com.

or

rootmaster# nispopulate -Y -d wiz.com. -h corporatemachine -a   \
 130.48.58.111 -y corporate.wiz.com
Add additional members to the admin group.
rootmaster# nisgrpadm -a admin.wiz.com. topadmin.wiz.com. \
 secondadmin.wiz.com.
Make a checkpoint of the NIS+ database.
rootmaster# nisping -C org_dir.wiz.com.
Initialize an NIS+ client machine in the wiz.com. domain.
wizclient1# nisclient -i -d wiz.com. -h rootmaster -a ipaddress
Initialize user as an NIS+ client.
wizclient1user1prompt% nisclient -u
Convert NIS+ client to NIS+ server, without or with NIS compatibility or with NIS and DNS.
wizclient1# mk_nisd [-I|-B|-N]

or

wizclient1# mk_nisd -y [-I|-B|-N]

or

wizclient1# mk_nisd -y -b [-I|-B|-N]
Create a root replica.
rootmaster# nisserver -R -d wiz.com. -h wizclient1
Convert a server to a nonroot master server of the subwiz.wiz.com. domain.
rootmaster# nisserver -M -d subwiz.wiz.com. -h wizclient2
Populate the new master server's NIS+ tables--from files or from NIS maps.
wizclient2# nispopulate -F -p /nis+files -d subwiz.wiz.com.

or

wizclient2# nispopulate -Y -d subwiz.wiz.com. \
 -h businessmachine -a 130.48.58.242 -y business.wiz.com
Create a master server replica.
wizclient2# nisserver -R -d subwiz.wiz.com. -h wizclient3
Initialize an NIS+ client in the subwiz.wiz.com. domain.
subclient1# nisclient -i -d subwiz.wiz.com. -h wizclient2 \
 -a ipaddress
Initialize user as an NIS+ user.
subclient1user2prompt% nisclient -u


[ Next Article | Previous Article | Book Contents | Library Home | Legal | Search ]
