Memory is allocated to applications using the malloc subsystem. The malloc subsystem is a memory management API that consists of the following subroutines:
The malloc subsystem manages a logical memory object called a heap. The heap is a region of memory that resides in the application's address space between the last byte of data allocated by the compiler and the end of the data region. The heap is the memory object from which memory is allocated and to which memory is returned by the malloc subsystem API.
The malloc subsystem performs three fundamental memory operations: allocation, deallocation, and reallocation. Allocation is performed by the malloc and calloc subroutines, deallocation by the free subroutine, and reallocation by the realloc subroutine. The mallopt and mallinfo subroutines are supported for System V compatibility. The mallinfo subroutine can be used during program development to obtain information about the heap managed by the malloc subroutine. The mallopt subroutine has no functionality. Similar to the malloc subroutine, the valloc subroutine is provided for Berkeley compatibility.
Refer to the following sections for additional information:
A 32-bit application program running on the system has an address space that is divided into seven segments, as follows:
A 64-bit application program running on the system has an address space that is divided into seven segments, as follows:
| 0x0000 0000 0000 0000 to 0x0000 0000 0fff ffff | Contains the kernel. |
| 0x0000 0000 d000 0000 to 0x0000 0000 dfff ffff | Contains shared library information. |
| 0x0000 0000 e000 0000 to 0x0000 0000 efff ffff | Contains miscellaneous kernel data. |
| 0x0000 0000 f000 0000 to 0x0000 0000 0fff ffff | Reserved. |
| 0x0000 0001 0000 0000 to 0x07ff ffff ffff ffff | Contains the application program text and application program data and the application stack and shared memory or mmap services. |
| 0x0800 0000 0000 0000 to 0x08ff ffff ffff ffff | Privately loaded objects. |
| 0x0900 0000 0000 0000 to 0x09ff ffff ffff ffff | Shared library text and data. |
| 0x0f00 0000 0000 0000 to 0x0fff ffff ffff ffff | Application stack. |
The _edata location is an identifier that points to the first byte following the last byte of program data. The heap is created by the malloc subsystem when the first block of data is allocated. The malloc subroutine creates the heap by calling the sbrk subroutine to move the _edata location up to make room for the heap. The malloc subroutine then expands the heap as the needs of the application dictate. Space for the heap is acquired in increments determined by the BRKINCR value. This value can be examined with the mallinfo subroutine and modified using the mallopt subroutine.
The heap is divided into allocated blocks and freed blocks. The free pool consists of the memory available for subsequent allocation. An allocation is completed by first removing a block from the free pool and then returning to the free pool a pointer to this block. A reallocation is completed by allocating a block of storage of the new size, moving the data to the new block, and freeing the original block. The allocated blocks consist of the pieces of the heap being used by the application. Because the memory blocks are not physically removed from the heap (they simply change state from free to in-use), the size of the heap does not decrease when memory is freed by the application.
The allocation policy refers to the set of data structures and algorithms employed to represent the heap and to implement allocation, deallocation, and reallocation. The malloc subsystem supports two allocation policies: the Version 3.2/Version 4.1 allocation policy and the Version 3.1 allocation policy. The two allocation policies are supported due to potential compatibility problems between the Version 3.2/Version 4.1 policy and existing applications. The interface to the malloc subsystem is identical for both allocation policies.
The Version 3.2/Version 4.1 allocation policy maintains the free space in the heap as a free tree. The free tree is a binary tree in which nodes are sorted vertically by length and horizontally by address. The data structure imposes no limitation on the number of block sizes supported by the tree, allowing a wide range of potential block sizes. Tree reorganization techniques optimize access times for node location, insertion, and deletion, and also protect against fragmentation.

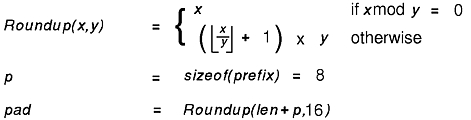

The number of bytes required for a block is calculated using a roundup function. The equation is illustrated in the figure.
The leftmost node of the tree that is greater than or equal to the size of the malloc subroutine len parameter value is removed from the tree. If the block found is larger than the needed size, the block is divided into two blocks: one of the needed size, and the second a remainder. The second block, called the runt, is returned to the free tree for future allocation. The first block is returned to the caller.
If a block of sufficient size is not found in the free tree, the heap is expanded, a block the size of the acquired extension is added to the free tree and allocation continues as previously described.
Memory blocks deallocated with the free subroutine are returned to the tree, at the root. Each node along the path to the insertion point for the new node is examined to see if it adjoins the node being inserted. If it does, the two nodes are merged and the newly merged node is relocated in the tree. Length determines the depth of a node in the tree. If no neighbor is found, the node is simply inserted at the appropriate place in the tree. Merging adjacent blocks can significantly reduce heap fragmentation.
If the size of the reallocated block will be larger than the original block, the original block is returned to the free tree with the free subroutine so that any possible coalescence can occur. Then, a new block of the requested size is allocated, the data is moved from the original block to the new block, and the new block is returned to the caller.
If the size of the reallocated block is smaller than the original block, the block is split and the runt is returned to the free tree.
In Version 3.1 of the operating system, the heap is maintained as a set of 28 hash buckets, each of which points to a linked list. Hashing is a method of transforming a search key into an address for the purpose of storing and retrieving items of data. The method is designed to minimize average search time. A bucket is one or more fields in which the result of an operation is kept. Each linked list contains blocks of a particular size. The index into the hash buckets indicates the size of the blocks in the linked list. The size of the block is calculated using the following formula:
size = 2 i + 3
where i identifies the bucket. This means that the blocks in the list anchored by bucket zero are 2 0+3 = 16 bytes long. Therefore, given that a prefix is 8 bytes in size, these blocks can satisfy requests for blocks between 0 and 8 bytes long. The following table illustrates how requested sizes are distributed among the buckets.
Note: This algorithm can use as much as twice the amount of memory actually allocated by the application. An extra page is required for buckets larger than 4096 bytes because objects of a page in size or larger are page-aligned. Since the prefix immediately precedes the block, an entire page is required solely for the prefix.
| Version 3.1 Allocation Policy | |||
| Bucket | Block Size | Sizes Mapped | Pages Used |
| 0 | 16 | 0 ... 8 | |
| 1 | 32 | 9 ... 24 | |
| 2 | 64 | 25 ... 56 | |
| 3 | 128 | 57 ... 120 | |
| 4 | 256 | 121 ... 248 | |
| 5 | 512 | 249 ... 504 | |
| 6 | 1K | 505 ... 1K-8 | |
| 7 | 2K | 1K-7 ... 2K-8 | |
| 8 | 4K | 2K-7 ... 4K-8 | 2 |
| 9 | 8K | 4K-7 ... 8K-8 | 3 |
| 10 | 16K | 8K-7 ... 16K-8 | 5 |
| 11 | 32K | 16K-7 ... 32K-8 | 9 |
| 12 | 64K | 32K-7 ... 64K-8 | 17 |
| 13 | 128K | 64K-7 ... 128K-8 | 33 |
| 14 | 256K | 128K-7 ... 256K-8 | 65 |
| 15 | 512K | 256K-7 ... 512K-8 | 129 |
| 16 | 1M | 256K-7 ... 1M-8 | 257 |
| 17 | 2M | 1M-7 ... 2M-8 | 513 |
| 18 | 4M | 2M-7 ... 4M-8 | 1K + 1 |
| 19 | 8M | 4M-7 ... 8M-8 | 2K + 1 |
| 20 | 16M | 8M-7 ... 16M-8 | 4K + 1 |
| 21 | 32M | 16M-7 ... 32M-8 | 8K + 1 |
| 22 | 64M | 32M-7 ... 64M-8 | 16K + 1 |
| 23 | 128M | 64M-7 ... 128M-8 | 32K + 1 |
| 24 | 256M | 128M-7 ... 256M-8 | 64K + 1 |
| 25 | 512M | 256M-7 ... 512M-8 | 128K + 1 |
| 26 | 1024M | 512M-7 ... 1024M-8 | 256K + 1 |
| 27 | 2048M | 1024M-7 ... 2048M-8 | 512K + 1 |

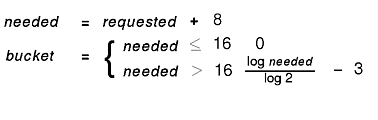

A block is allocated from the free pool by first converting the requested bytes to an index in the bucket array, using the equation shown in the figure.
The size of each block in the list anchored by the bucket is block size = 2 bucket + 3. If the list in the bucket is null, memory is allocated using the sbrk subroutine to add blocks to the list. If the block size is less than a page, then a page is allocated using the sbrk subroutine, and the number of blocks arrived at by dividing the block size into the page size are added to the list. If the block size is equal to or greater than a page, needed memory is allocated using the sbrk subroutine, and a single block is added to the free list for the bucket. If the free list is not empty, the block at the head of the list is returned to the caller. The next block on the list then becomes the new head.
When a block of memory is returned to the free pool, the bucket index is calculated as with allocation. The block to be freed is then added to the head of the free list for the bucket.
When a block of memory is reallocated, the needed size is compared against the existing size of the block. Because of the wide variance in sizes handled by a single bucket, the new block size often maps to the same bucket as the original block size. In these cases, the length of the prefix is updated to reflect the new size and the same block is returned. If the needed size is greater than the existing block, the block is freed, a new block is allocated from the new bucket, and the data is moved from the old block to the new block.
