ndp Command

Commands Reference, Volume 4

ndp Command

Purpose

IPv6 neighbor discovery display and control.

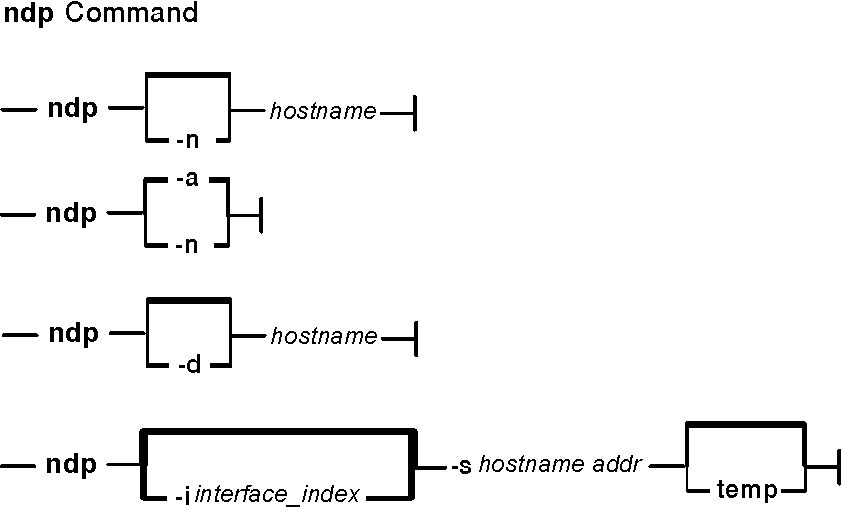

Syntax

ndp [ -n ] hostname

ndp [ -n ] -a

ndp [ -d ] hostname

ndp [ -i interface_index ] -s hostname addr [ temp ]

Description

The ndp program displays and modifies the IPv6-to-Ethernet, or the IPv6-to-TokenRing address translation tables used by the IPv6 neighbor discovery protocol.

With no flags, the program displays the current ndp entry for hostname. The host may be specified by name or by number, using IPv6 textual notation.

Flags

- a	Displays all of the current ndp entries.
- d	Lets a super-user delete an entry for the host called hostname with the -d flag.
- i interface_index	Specifies the index of the interface to use when an ndp entry is added with the -s flag (useful with the local-link interface).
- n	Shows network addresses as numbers (normally ndp attempts to display addresses symbolically).
- s hostname addr	Creates an ndp entry for hostname with the Hardware address addr. The Hardware address is given as six hex bytes separated by colons. The entry is permanent unless the temp is specified in the command.

Examples

This is an example output from the - a flag:

	`# ndp -a`
	`e-crankv6 (::903:9182) at link#2 0:20:af:db:b8:cf`
	`e-crankv6-11 (fe80:0:100::20:afdb:b8cf) at link#2 0:20:af:db:b8:cf`
	`# ndp -d e-crankv6-11`
	`e-crankv6-11 (fe80:0:100::20:afdb:b8cf) deleted`

Related Information

The ifconfig command, ndpd-host command, ndpd-router command, and the autoconf6 command.
