Forwards BOOTP and DHCP packets off the local network.

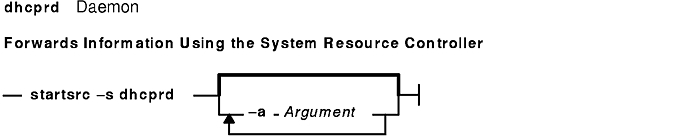

startsrc -s dhcprd [ -a Argument ] [ -a Argument ] ...

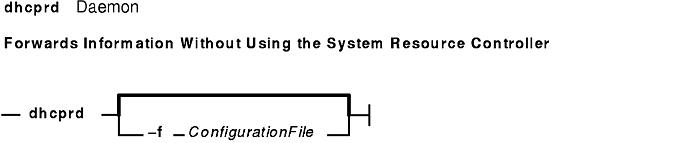

dhcprd [ -f ConfigurationFile ]
The dhcprd daemon listens for broadcast packets, receives them, and forwards them to the appropriate server. This keeps broadcasts from having to be propagated to other networks. The DHCP Relay Agent handles the forwarding the DHCP and BOOTP client broadcast packets off of the local network and on to a set of servers. The initial packets sent by a BOOTP or DHCP client are broadcasts on the local interface of the client machine. These packets are not allowed to be passed through network gateways and routers. So, a BOOTP/DHCP relay agent, the dhcprd daemon, sends these packets to the appropriate servers.
The DHCP Server reads /etc/services file to determine which port it should use for receiving requests. The default service is dhcps. Since this is the same port that the bootpd daemon uses, you can only have one (either dhcprd or bootpd) daemon running. If you choose the dhcprd daemon, you will need to uncomment bootp from the /etc/inetd.conf file, then enter refresh -s inetd on the command line.
Note: If bootpd is running, this program needs to be stopped before starting the daemons.
| -f ConfigurationFile | Specifies the configuration file to be used. The default is the /etc/dhcprd.cnf file. |
This command returns the following exit values:
| 0 | Successful completion. |
| >0 | An error occurred. |
Access Control: You must have root authority to run this command.
| /usr/sbin/dhcprd | Contains the dhcprd daemon. |
| /etc/dhcprd.cnf | Contains the default configuration file. |
| /etc/services | Defines sockets and protocols used for internet services. |
| /etc/inetd.conf | Defines the services controlled by the inetd daemon. |
The dhcpsconf command, startsrc command, stopsrc command.
The dhcpcd daemon, dhcpsd daemon, inetd daemon.
DHCP Client Configuration File
DHCP Server Configuration File
TCP/IP Address and Parameter Assignment - Dynamic Host Configuration Protocol (DHCP)
The System Resource Controller Overview in AIX Version 4.3 System Management Concepts: Operating System and Devices gives an explanation of subsystems, subservers, and the System Resource Controller.
Setting up and running Web-based System Manager in AIX Version 4.3 System Management Guide: Operating System and Devices.
The SMIT Interface for TCP/IP in AIX Version 4.3 System Management Guide: Communications and Networks.
TCP/IP Daemons in AIX Version 4.3 System Management Guide: Communications and Networks.
