Commands Reference, Volume 5

survd Daemon

Purpose

Controls the surveillance daemon.

Syntax

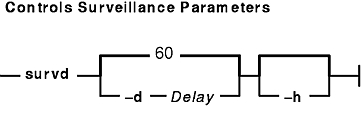

Controls Surveillance Parameters

survd [ -d Delay ] [ -h ]

Resets the Surveillance

survd -r

Description

The survd command enables a user with root authority to control the surveillance daemon. You can choose the frequency of the signals that AIX sends to the bring-up microprocessor (BUMP), using the -d Delay flag. You can also choose the way the BUMP will reboot the system (hardware or software reboot) if it does not receive a signal from AIX within the given delay. (The -h flag stands for hardware reboot required). Finally, you can decide to turn the surveillance off, using the -r flag.

The survd daemon works only on multiprocessor systems with Micro Channel I/O. For IBM systems, this includes the IBM 7012 Model G Series, the IBM 7013 Model J Series, and the IBM 7015 Model R Series.

Attention: Do not use the kill command to stop the surveillance: in this case the BUMP would no longer receive signals from the daemon and would reboot the system.

Flags

-d Delay Specifies the period of the signals that AIX sends to the BUMP. The Delay parameter indicates the period in seconds. The minimal value authorized for the Delay parameter is 10 seconds. If this flag is not specified, the frequency will be 60 seconds.
-h Indicates that the BUMP will execute a hardware reboot if it does not receive any signal from AIX within the defined delay. If this flag is not specified a software reboot will be executed.
-r Turns off the surveillance and kills the surveillance daemon. This flag cannot be used with -d or -h flags, and it has no action if the daemon was not running.

Security

Access Control: Only the root user can run this command.

Examples

  1. To set the signal period to 70 seconds, enter:
    survd -d 70
    Note that if no signal is received by the BUMP within 70 seconds, the BUMP will execute a software reboot, since the -h flag is not specified.
  2. To turn the surveillance off, enter:
    survd -r

Related Information

The AIX Version 4.3 Problem Solving Guide and Reference.
