x_add_trm_160 Command

Commands Reference, Volume 6

x_add_trm_160 Command

Purpose

Adds an Xstation 160 to the host.

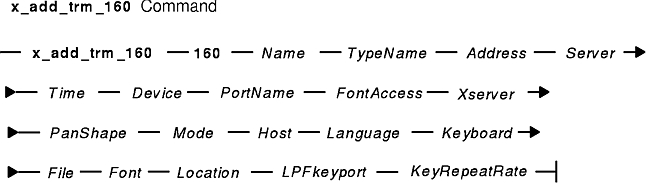

Syntax

x_add_trm_160 160 Name TypeName Address Server Time Device PortName FontAccess Xserver PanShape Mode Host Language Keyboard File Font Location LPFkeyport KeyRepeatRate

Description

The x_add_trm_160 command adds the Xstation 160 specified by the Name parameter to the current host, and stores the configuration in the /etc/x_st_mgr/xs160/cfg/<IPaddress> file, and the /etc/x_st_mgr/x_st_mgrd.tmty file.

Parameters

Mandatory parameters are:

160	Specifies that this command is used only for an Xstation 160.
Name	Specifies the name of the Xstation. The Name parameter can be up to eight characters long and include the uppercase or lowercase letters a through z, the numbers 0 through 9, the - (dash) and the . (period). Name can be a user name, such as `taylor`, or a group name with a number appended, such as `graphs-2.`The terminal name must be known to the host system. Note: Name should not start with a uppercase or lowercase o or x, followed by an octal or hexadecimal numeric. These characters are interpreted as octal or hexadecimal numbers, instead of as a terminal name. In the examples x3 and xE4, the 3 and the E4 are hexadecimal numerics.
TypeName	Specifies the name you defined for this network-Xstation model-subnet combination with the Define an Xstation Network `Type` option in SMIT or with the x_def_net command. Press the F4 key in SMIT to select the network type. An example is x_st_mgr.ether160 for Ethernet and an Xstation 160.
Address	Specifies the Local Area Network (LAN) hardware address of the Xstation. This address appears on the LAN Statistics screen when you power-on the Xstation. Each Xstation has a unique 6-byte hexadecimal hardware address, in XXXXXXXXXXXX format, that cannot be changed by the user.
Server	Specifies whether or not the host system is a primary boot server. A primary boot server responds immediately to a boot-protocol broadcast request from an Xstation; for other (secondary) boot servers, a delay time is imposed (see Time, listed next). Two options are valid: y if the server is a primary server, and n if the server is not a primary server. The default option is y.
Time	Specifies the number of seconds a secondary boot server must wait before answering a boot-protocol broadcast request. (The valid number for a primary server is 0, as there is no delay time.) In SMIT, press F4 to see the recommended range of values. Generally, a value less than the minimum value does not distinguish between a primary and secondary server, and a secondary server may be selected although the primary server is available. A value greater than the maximum value may lead to a time out.
Device	Specifies the input device. Device must be mouse or tablet. In SMIT, press the F4 button to select the input device. The default option is mouse. You can attach a 6093 tablet device (Model 11 or Model 12) to an Xstation serial port. A tablet uses absolute positioning, as opposed to the relative positioning of a mouse, and cannot change the initial cursor location. The threshold and acceleration parameters of the xset command apply only to the mouse. X Windows protocol supports five button signals from a mouse or tablet. Buttons 1, 2, and 3 correspond to the left, middle, and right buttons respectively. Button 4 is used as an even generating button. If required by specific application programs, button 5 sends the required messages. Buttons 6 through 16, if present, are disabled.
PortName	Specifies the serial port on an Xstation 160 to which the tablet is attached. In SMIT, press the F4 key to select an option. The valid options are: T1, T2, S1 or S2. The default option is T1.
FontAccess	Specifies the way to access the font files. In SMIT, press the F4 key to select an option. Valid options are: Base FLASH Network NFS Optional FLASH The default option is Base FLASH.
Xserver	Specifies the way to access the Xserver file list. In SMIT, press the F4 key to select a option. Valid options are: Base FLASH Network NFS Optional FLASH The default option is Base FLASH.
PanShape	Specifies how the hardware pan feature is to be used. Valid options are none, square, horizontal, and vertical. The default value is none. With the hardware pan feature enabled, the physical screen shows a portion of a larger base window whose size is dependent on the amount of video memory (VRAM) installed on the Xstation. When the cursor is moved past the edge of the display, the screen will automatically scroll in that direction provided it has not already reached the edge of the base window. Note: The window size for panning is always a power of 2. With 2MB VRAM, expanding the window dimensions to a power of 2 may not leave enough memory for the shape selected.
Mode	Specifies the mode used by X Display Manager Control Protocol (XDMCP). XDMCP uses the xdm program to facilitate the connection of an Xstation to a remote host. XDMCP allows the user to turn an Xstation off and on again and maintain an established connection to the remote host. Valid options are: broadcast Sends a message to the network and waits for an xdmcp host to respond. direct Directs a request to an xdmcp manager known to the Xstation. indirect Sends an indirect request to an xdmcp manager that maintains a list of xdmcp hosts. The manager assigns an xdmcp host to respond to the Xstation. off No X Display Manager Control Protocol (XDMCP). The default option is off.
Host	Specifies the name of the xdmcp host used for direct or indirect communication with the Xstation. Valid options are none or the name of an xdmcp host. If XDMCP is not used or if broadcast mode is used, the value of Host is none. The name of an xdmcp host must be specified if Mode is direct or indirect. The default option is none.
Language	Sets the language used for system messages, the LANG environment variable. Press the F4 key in SMIT to select an option.
Keyboard	Sets the map for the keyboard layout. Press the F4 key in SMIT to select an option.
File	Sets the name of the keyboard file. The default is `'keyboard.'` Some countries have a second keyboard file usually named `'keyboard.alt.'`
Font	Sets the font used in the login window. Press the F4 key in SMIT to select an option.
Location	Sets the position of the login window on the display. Press the F4 key in SMIT to select an option. Valid entries are: Upper left, Lower left, Upper right, and Lower right.
LPFkeyport	Specifies the serial port on an Xstation to which the LPF keys are attached. Press the F4 key to select an option. The valid options are: none, T1, T2, S1 or S2.
KeyRepeatRate	Sets the rate, in characters per second, of automatically transmitted duplicate characters. A prolonged stay on any character key will activate the typematic operation and continue to transmit duplicate characters until the key is released. The arrow keys will move at twice the speed of character keys, up to 30 characters per second. The default rate is 28.

Security

Access Control: Only the root user should have execute (x) access to this command.

Example

To add Xstation taylor to the current host as a primary server, enter a command such as the following:

x_add_trm_160 160 taylor x_st_mgr.ether 10005ac38e9 y \
00 mouse S1 n n 'Base FLASH' 'Base FLASH' \
'none' off none 'English    (United States) IBM-850' \
'English (United States)' 'keyboard' Rom14 'Upper left' 'none' '20'

Xstation taylor is added to the current host, as defined by the parameters: Model 160, a network type of ethernet, a hardware address of 10005ac38e9, primary server status, no delay time, input from a mouse, tablet port is ignored, fonts and bootfile from Base FLASH, no hardware pan feature, xdmcp mode off, no host name, United States English LANG variable, United States English keyboard layout, standard keyboard file, login window font Rom14, the login window in the upper left corner of the screen, no LPF keys, and a key repeat rate of 20 characters per second.

Files

/usr/lpp/x_st_mgr/bin/x_add_trm_160	Contains the x_add_trm_160 command.
/etc/x_st_mgr/ibm/xs160/cfg/<IPADDRESS>	Contains the Xstation configuration file.
/etc/x_st_mgr/x_st_mgrd.cf	Contains the Xstation Manager configuration file.
/etc/x_st_mgr/x_st_mgrd.tmty	Contains the terminal type file.
/etc/bootptab	Contains the Boot Protocol table.
